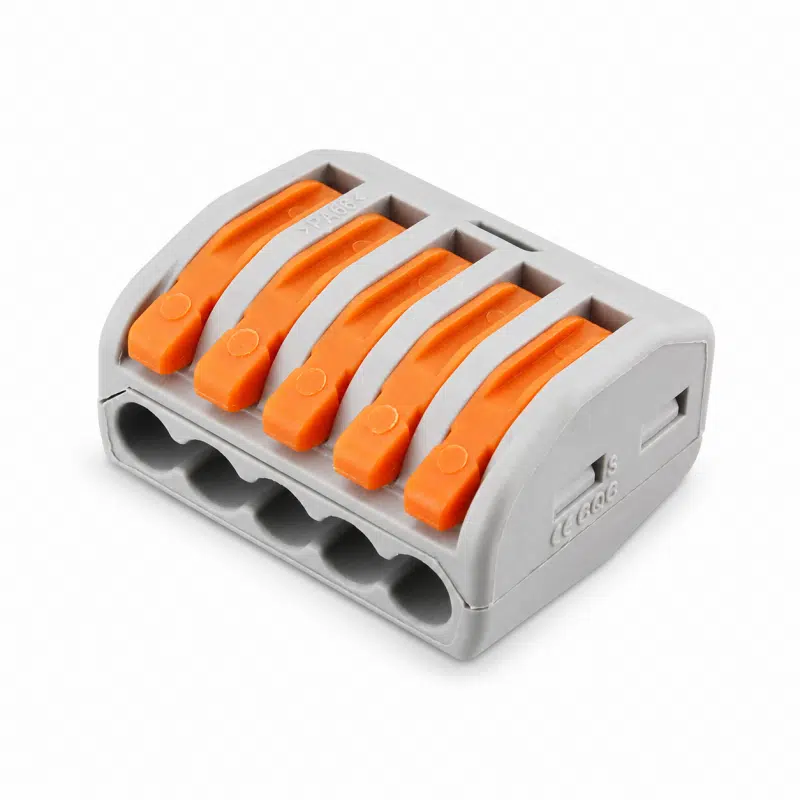

5 Slot LED Wire Connector

$1.79 +HST

Core features

5-port quick-connect wire connector
Connects up to five wires
Ideal for looping light fittings and splitting wiring connections
Tool-free lever-style connection
Orange locking levers securely clamp wires in place
Suitable for solid and stranded wire
Levers can be opened and closed multiple times
Sold in minimum quantities of 5

Specifications

Connection Points	5
Rated Voltage	400V
Rated Surge Voltage	4000V
Rated Current	32A
Wire Range	12 AWG to 28 AWG
Solid Wire	0.08–4.0 mm²
Stranded Wire	0.08–2.5 mm²
Strip Length	9–10 mm
Rated Temperature	85°C
Dimensions	26.3 × 14.4 × 21 mm
Material	Nylon plastic, copper and 304 stainless steel
Colour	Gray with orange levers

Installation

Strip approximately 9–10 mm of insulation from each wire. Lift the required orange lever to the fully open 90° position, insert the stripped conductor fully into the connector, then lower the lever to securely clamp the wire in place. Repeat for each connection as required. The levers can be reopened and reused multiple times.

Compatibility

Suitable for solid and stranded conductors within the specified wire ranges. With five connection points, this connector is particularly useful for distributing or combining multiple compatible wiring connections, including lighting and cabinetry installations.

What's included

Connector sold individually, with a minimum purchase quantity of 5.

53 in stock
