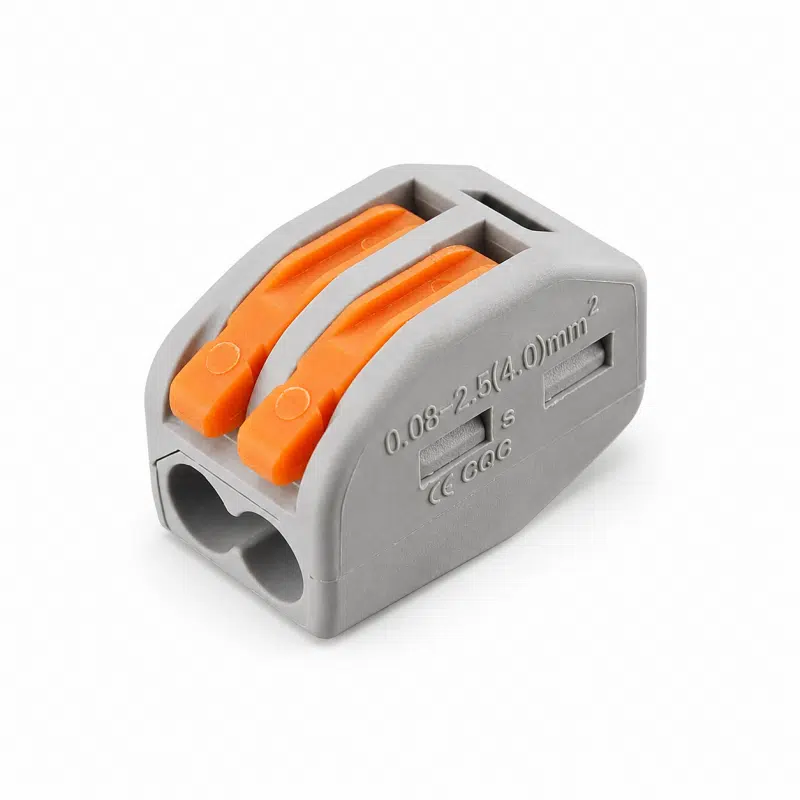

2 Slot LED Wire Connector

$1.29 +HST

Core features

2-port quick-connect wire connector
Connects up to two wires
Tool-free lever-style connection
Orange locking levers securely clamp wires in place
Suitable for solid and stranded wire
Levers can be opened and closed multiple times
Compact design for lighting, cabinetry and general wiring connections
Sold in minimum quantities of 5

Specifications

Connection Points	2
Rated Voltage	400V
Rated Surge Voltage	4000V
Rated Current	32A
Wire Range	12 AWG to 28 AWG
Solid Wire	0.08–4.0 mm²
Stranded Wire	0.08–2.5 mm²
Strip Length	9–10 mm
Rated Temperature	85°C
Dimensions	12.5 × 14.4 × 21 mm
Material	Nylon plastic, copper and 304 stainless steel
Colour	Gray with orange levers

Installation

Strip approximately 9–10 mm of insulation from the wire. Lift the orange lever to the fully open 90° position, insert the stripped conductor fully into the connector, then lower the lever to lock the wire securely in place. The levers can be reopened and reused multiple times.

Compatibility

Suitable for solid and stranded conductors within the specified wire ranges. Ideal for quick wire connections in LED lighting, cabinetry, millwork and other compatible wiring applications.

What's included

Connector sold individually, with a minimum purchase quantity of 5.

64 in stock
