2 Pin 9-in-1 LED Strip Light Connector

$0.99 +HST

Core features

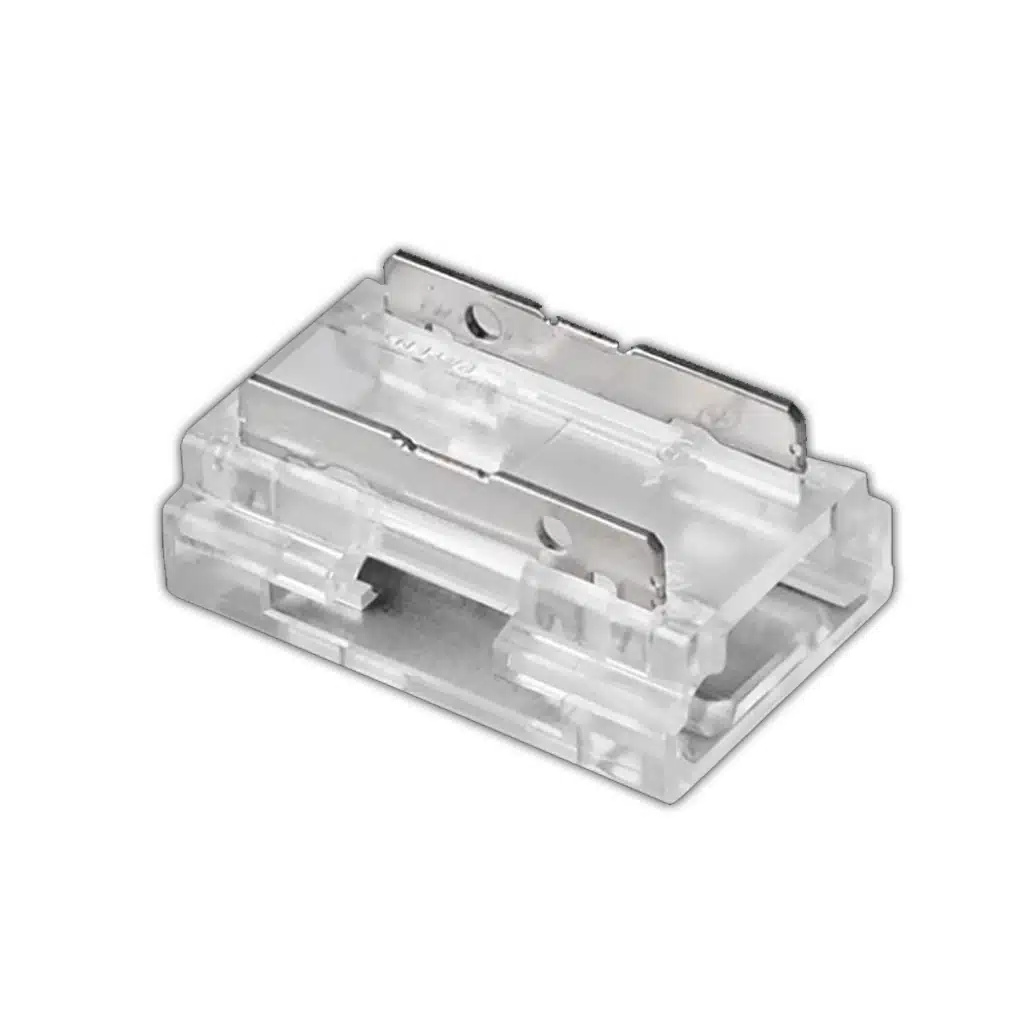

9-in-1 transparent connector for COB and compatible high-density SMD LED strips

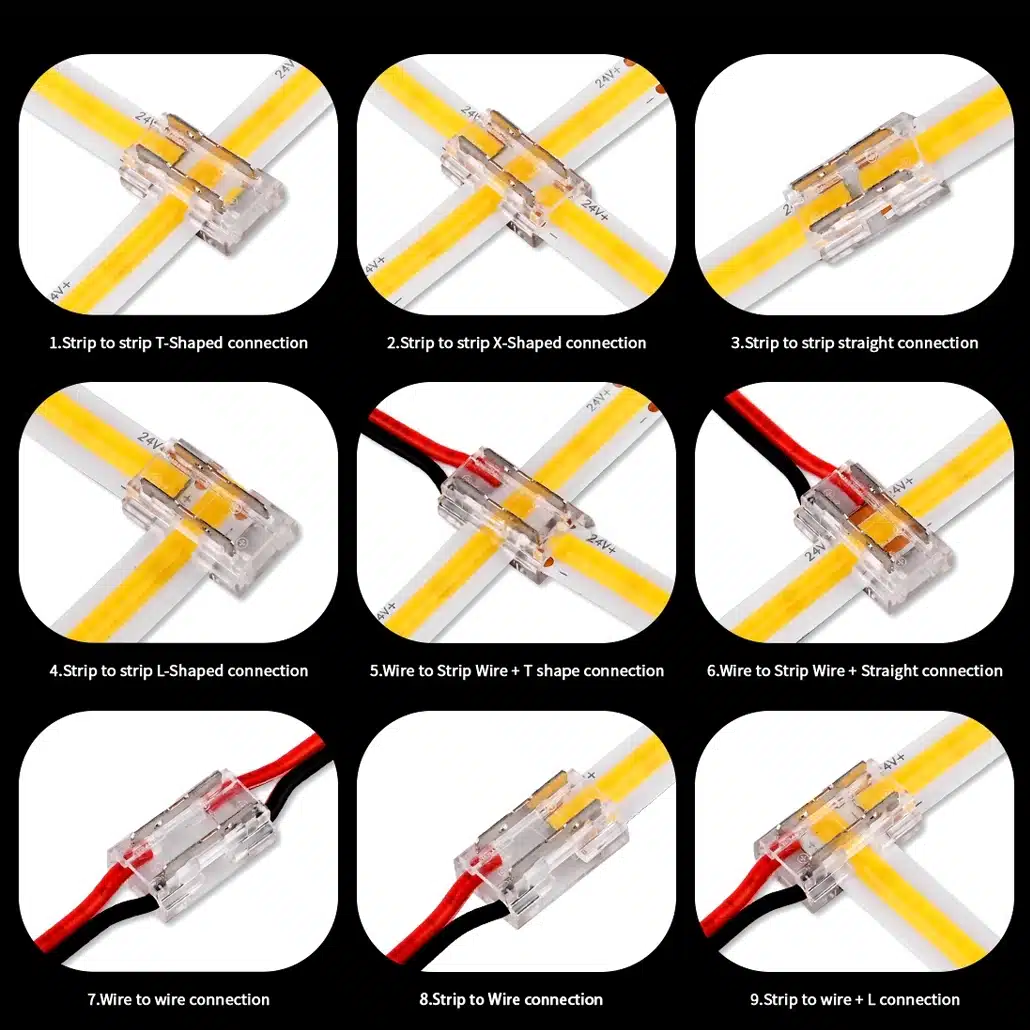

Supports multiple strip-to-strip and strip-to-wire connection configurations
2-pin design for single-colour LED lighting
Designed for 8mm wide LED strips
Suitable for IP20 strip lighting
Rated for 0–36V and up to 5A
Provides a solderless connection for faster installation
Sold in packs of 5

Specifications

Connector Type	9-in-1 LED strip connector
Pin Count	2-pin
Strip Width	8mm
Voltage Range	0–36V
Maximum Current	5A
Strip Thickness	0.25–0.35mm
Compatible Wire	20–22 AWG
Maximum Wire O.D.	Approx. 1.6–1.8mm
Environment	IP20 / dry indoor applications

Installation

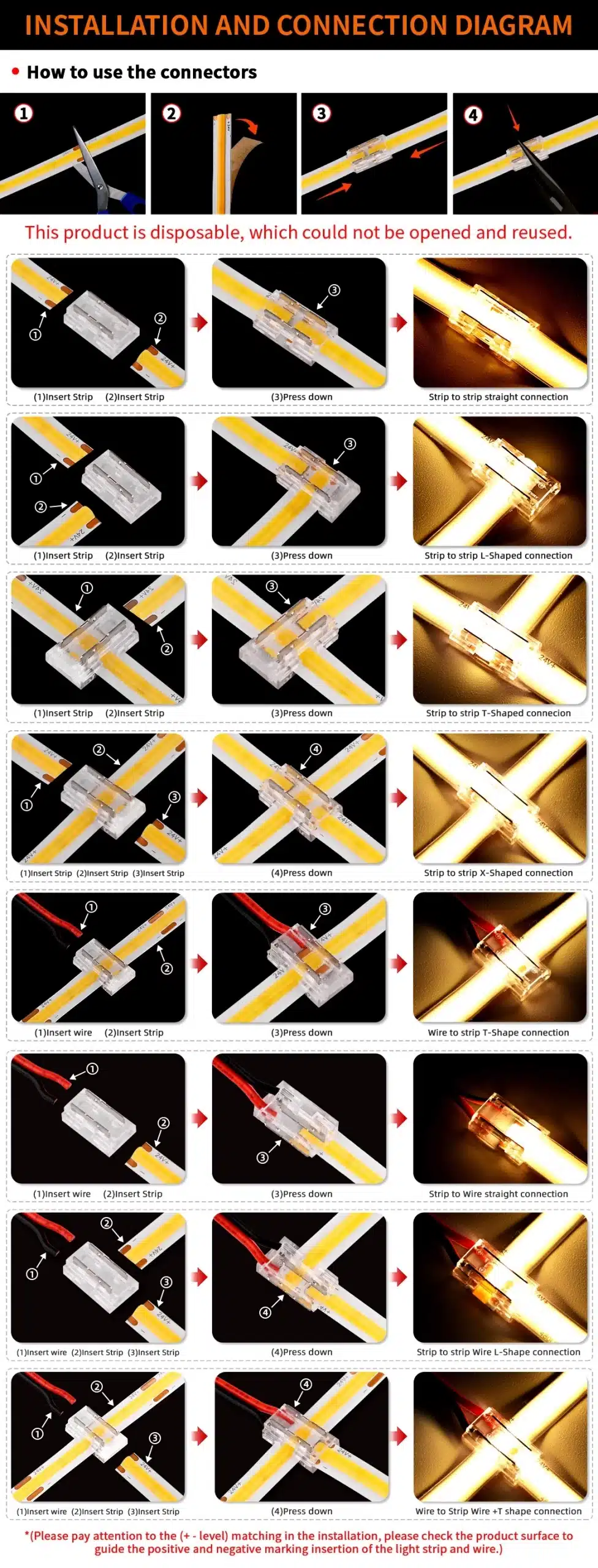

Insert the compatible 8mm LED strip and/or wire into the appropriate openings in the connector, making sure the positive and negative contacts are correctly aligned. Press the connector closed firmly to secure the electrical connection. Confirm that the strip and wire are fully seated before powering the lighting system.

Compatibility

Designed for 8mm, 2-pin COB LED strips and compatible high-density SMD strips within the specified strip thickness. Compatible wire should be 20–22 AWG with an outside diameter of approximately 1.6–1.8mm or less.

Important note

These connectors are intended for one-time installation. Once a connector has been closed and used, it should not be disconnected and reused, as this may reduce the reliability of the connection.

511 in stock

Complete your order

2 Meter Wire Extension (Male to 2 Pin Wire)

#CR-ET-02

$3.95 +HST each

+ Add

24V Slim LED Driver - Plug-in

$47.72 +HST each

Select

COB 4000k LED Light Strip - 8mm

#M5000-528-40K-V24-NWP-B8

$49.95 +HST each

+ Add

Description
Additional information

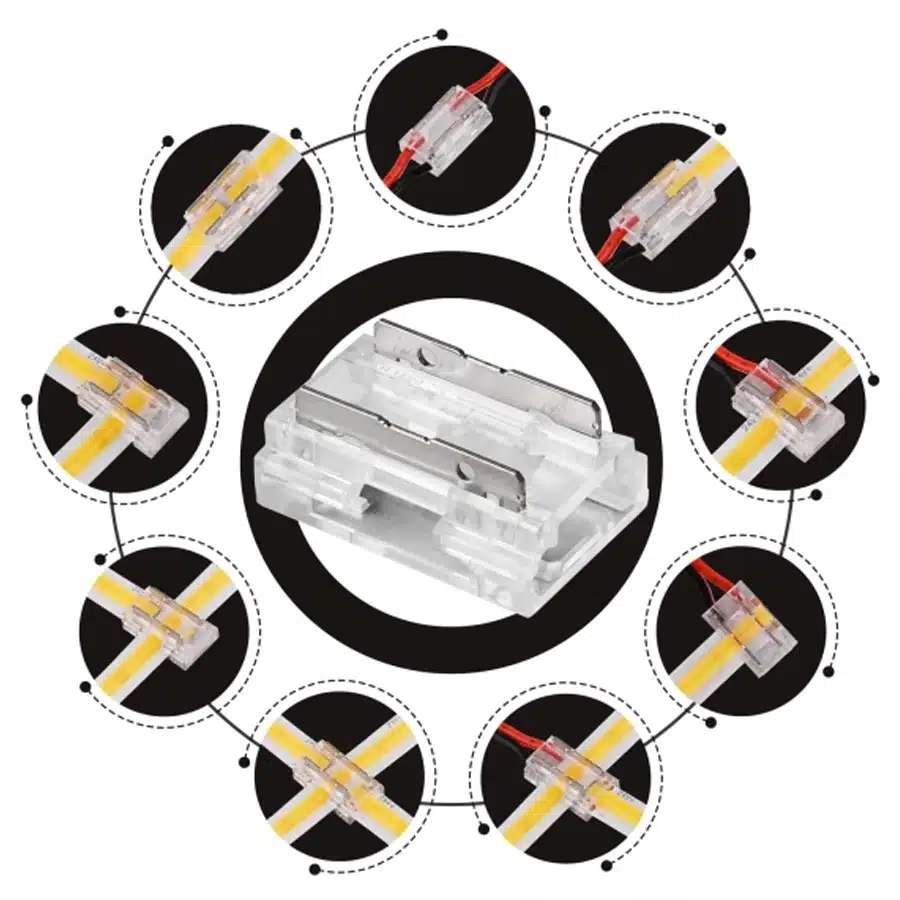

LED strip light connector designed to connect COB LED strips in 9 different configurations.

9-in-1 transparent connector for COB and some high density SMD strip lights
2 Pin, suitable for 8mm strip width, IP20
0-36V, 5A max
Compatible Strip Thickness: 0.25-0.35mm
Compatible Wire Thickness: 20-22AWG with Outside Diameter < 1.6-1.8mm
These connectors are disposable, once used they should not be disconnected and used again

NOTE: These connectors are sold in packs of 5. If more than 1 pack is ordered, they may be combined into a single package.
