2 Circuit Inline Connector

$1.89 +HST

Core features
  • 2-in, 2-out inline quick-connect terminal
  • Allows two wires to be connected quickly and securely
  • Tool-free lever-style connection
  • Suitable for solid and stranded wire
  • Compact design for use in cabinets, lighting installations and junction points
  • Rated up to 32A and 250V
  • Sold in minimum quantities of 5
Specifications
Connector Type 2-in, 2-out inline connector
Current Rating 32A
Rated Voltage 250V
Connections 2 input / 2 output
Operating Temperature -10°C to +60°C
Dimensions Approx. 40 × 20 × 15mm
Solid Wire Approx. 0.08–4mm²
Stranded Wire Approx. 1.5–4mm²
Installation
Lift the connector lever, insert the stripped wire fully into the terminal, then close the lever to secure the connection. Ensure the conductor is fully seated and that no exposed copper remains outside the connector.
Compatibility
Suitable for making inline wire connections in LED lighting, cabinetry, millwork and other low-voltage wiring applications. Always confirm that the wire size and electrical load are within the connector’s rated specifications.
What's included
Connector sold individually, with a minimum purchase quantity of 5.

200 in stock

Free Canada wide shipping on all orders over $300

  • Place your order before 4:00pm for same day dispatch
  • Free same day local pickup available in Enfield, Nova Scotia

Complete your order

2 Slot LED Wire Connector
2 Slot LED Wire Connector
#NA-2
$1.29 +HST each
+ Add 5 units
3 Slot LED Wire Connector
3 Slot LED Wire Connector
#NA-3
$1.59 +HST each
+ Add 5 units
5 Slot LED Wire Connector
5 Slot LED Wire Connector
#NA-5
$1.79 +HST each
+ Add 5 units

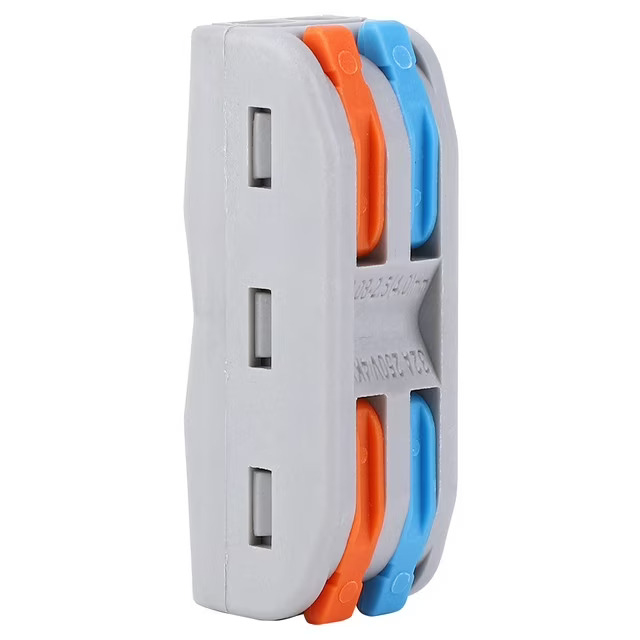

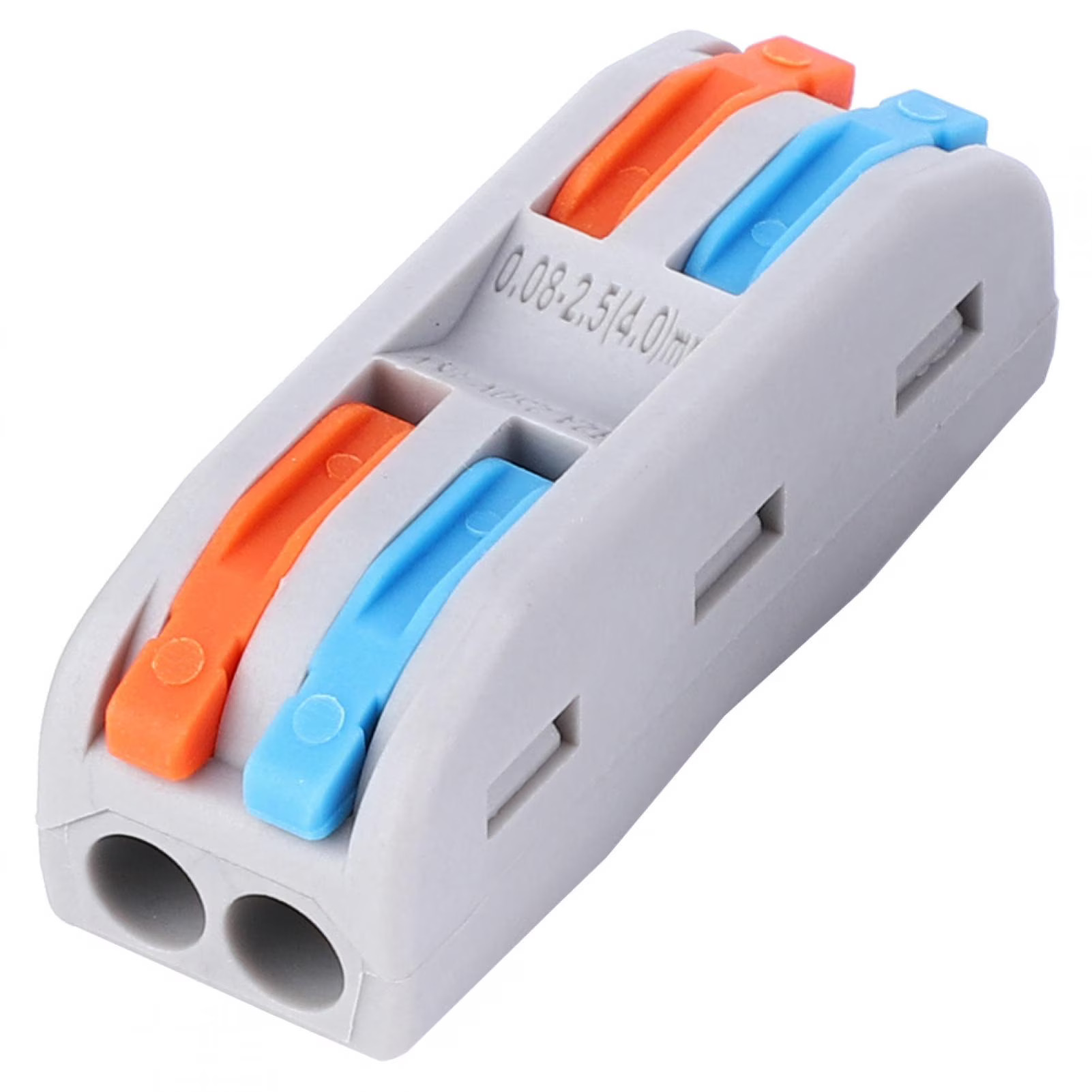

LED Wire Connector to allow 2 wires to be connected with ease to another set of 2 wires. Simply lift up the orange lever, insert the wire, and snap the lever back closed, same for the blue.

  • Quick connect to allow for 2 wires to be joined easily to 2 other wires



Also available in these configurations: 2 Wire, 3 Wire & 5 Wire



NOTE: These connectors are sold in packs of 5. If more than 1 pack is ordered, they may be combined into a single package.

Additional information

Weight 0.1 lbs
Dimensions 2 × 2 × 2 in
