This 60W 24V hardwired LED driver is designed for cabinet lighting, custom millwork, architectural lighting, and other low-voltage LED applications. Its ultra-thin design allows for a clean, compact installation while providing multiple dimming options.

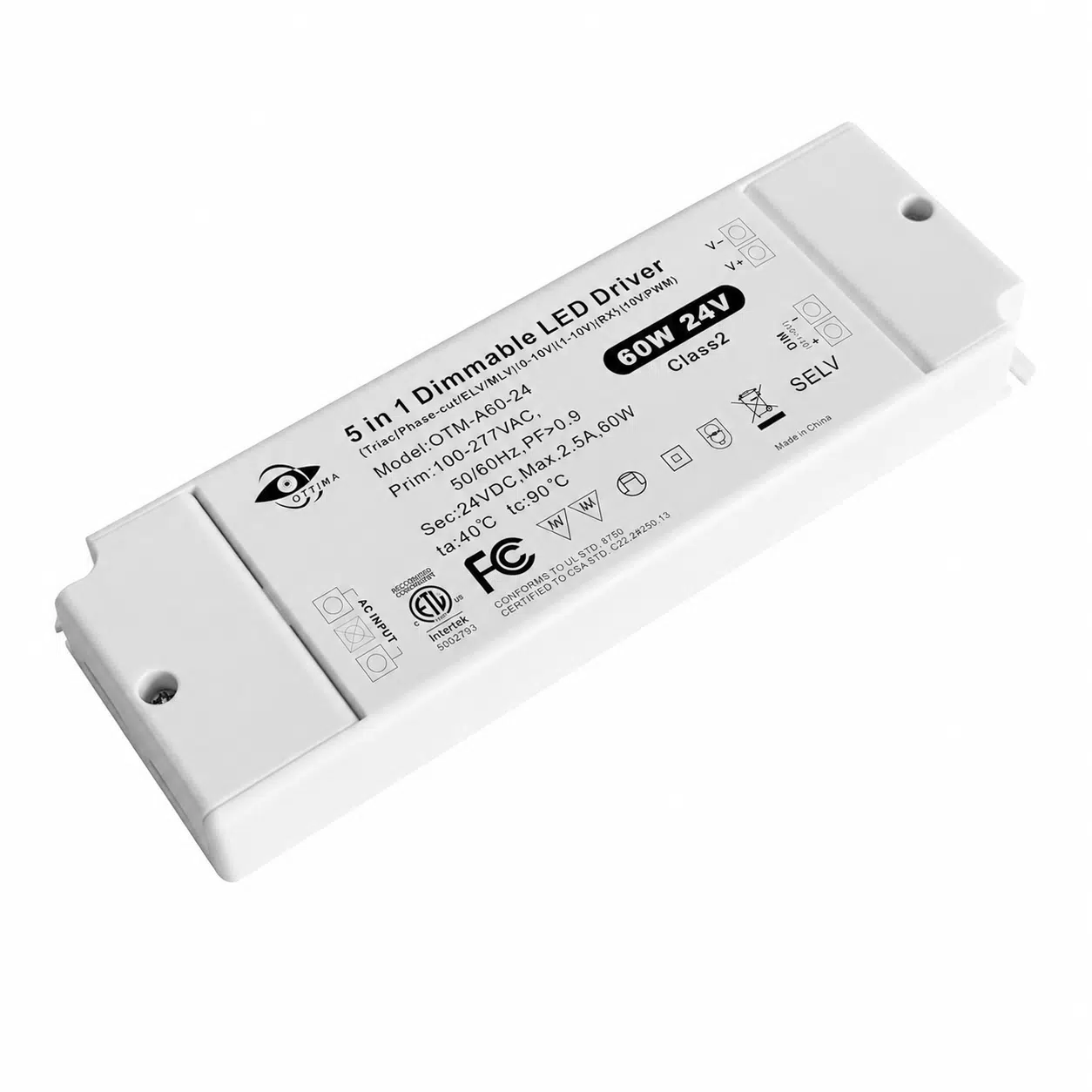

The OTM-A60-24 accepts 100–277V AC input and provides 24V DC output at up to 2.5A / 60W. The driver measures 185 × 63.5 × 22 mm and features an IP20 enclosure.
Input: 100–277V AC
Output: 24V DC
Power: 60W Maximum
Output Current: 2.5A
IP Rating: IP20
Power Factor: >0.9
Dimensions: 185 × 63.5 × 22 mm
The driver features 5-in-1 dimming compatibility, supporting:
- Forward-phase / TRIAC dimming
- Reverse-phase dimming
- 0–10V dimming
- 1–10V dimming
- 10V PWM / potentiometer dimming
Compatibility with both forward-phase and reverse-phase dimmers, while the built-in low-voltage dimming interface supports 0–10V, 1–10V, 10V PWM and potentiometer control.

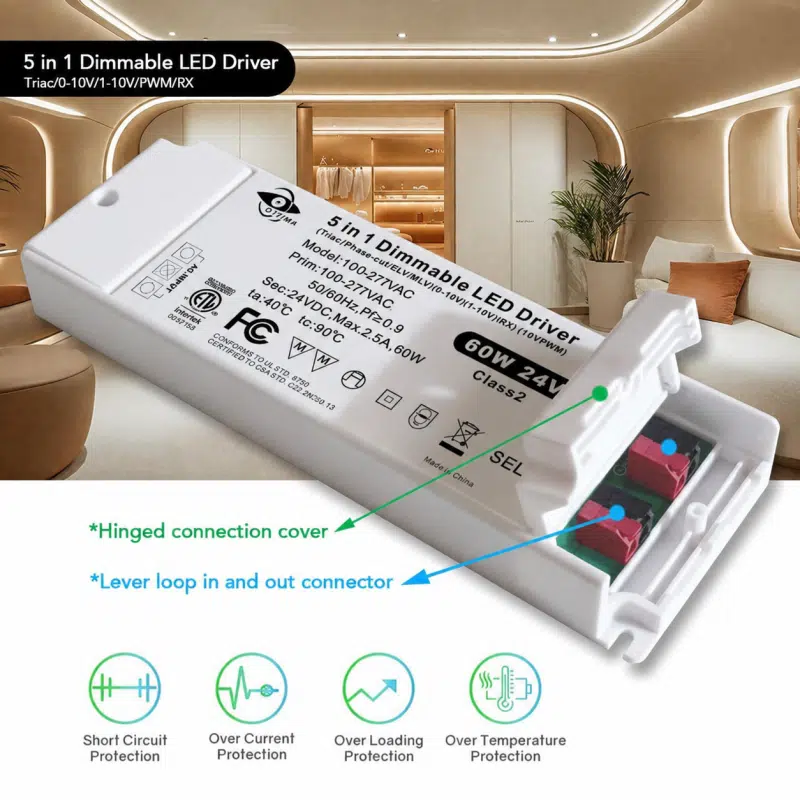

Additional features include:
- Flicker-free operation
- IP20 design
- Ultra-thin construction
- Free-air convection cooling
- Short-circuit protection
- Over-current protection
- Overload protection
- Over-temperature protection
- Operating temperature range of -40°C to +60°C
- High efficiency of up to 92%
The driver may also be installed for standard on/off operation without an external dimmer.
This hardwired driver must be installed by a qualified professional. Adequate ventilation must be provided around the driver for proper heat dissipation.
See downloadable specification sheet for additional wiring, dimming, and technical information.
